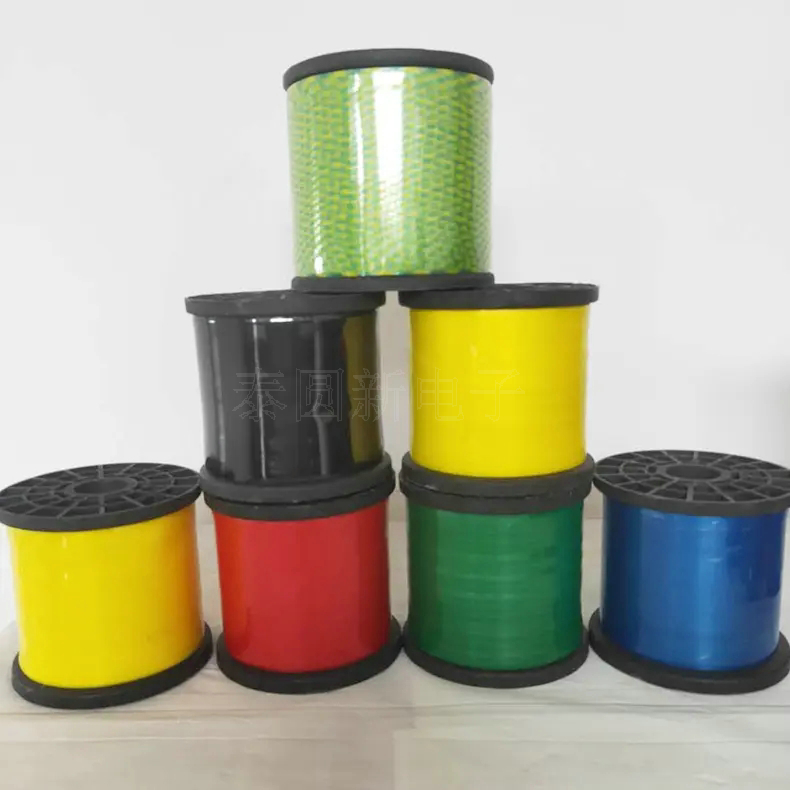

电缆分色带Cable Color Distingulshing Ribbons
本产品分为高温分色带(PET材料)及低温分色带（PE材质）两种，前者做电力电缆、交联电缆等分色用，后者做通讯电缆、光缆电缆分色用。取代绝缘或护套中的色母粒，节约大量成本。可承受瞬间耐温230度，在挤护套时直接随着螺杆挤出，通过硫化管，并且颜色不褪色。
This product is divided into two kinds of high temperature color separation belt (PET material) and low temperature color separation belt (PE material), the former is used for power cables, cross-linked cables and other color separation, the latter is used for communication cables, optical cable color separation
高温分色带HIGH TEMPERATURE COLOR DISTINGUISHING RIBBON
| 宽度With (mm) | 厚度Thickness (mm) | 耐温Temperature resistant | 拉伸强度MPA | 理论长度Theoreticallength | 热收缩率(150℃,30min) | 常用颜色Colors |
| 2.0±0.5 | 0.03±0.01 | 220-250 | ≥150 | 7000±5% | ≤3.5 | 红黄蓝绿黑Red,yellow,blue,green,black |
| 3.0±0.5 | 0.03±0.01 | 220-250 | 5000±5% | |||
| 4.5±0.5 | 0.03±0.01 | 220-250 | 3500±5% | |||
| 7.0±0.5 | 0.03±0.01 | 220-250 | 2500±5% |
低温分色带LOW TEMPERATURE COLOR DISTINGUISHING RIBBON
| 型号Type | 规格Specification | 耐温Temperature resistant() | 拉伸强度MPA | 理论长度Theoreticallength | 瞬间耐温℃ | 常用颜色Colors |
| PE-1 | 单色 | 220-250 | ≥200 | 2500±10% | 160-180 | 红、黄、蓝、绿、黑、桔、白、棕、紫、灰 |
| 白蓝、白桔、白灰、白绿、白棕、红桔、红蓝、红绿、黑蓝、黑桔、黄蓝、黄灰 | ||||||
| PE-2 | 双色 | 220-250 | 2500±10% |
| 軸内径(mm) | 軸外径(mm) | 轴高度(mm) | 毎軸£5( kg) | 轴材质 |
| 25 | 120 | 118 | 约1kg | 塑料 |
